#1
06-19-2015, 10:58 PM
|
||||
|
||||
|
That fancy redesigned fan and fan clutch.......

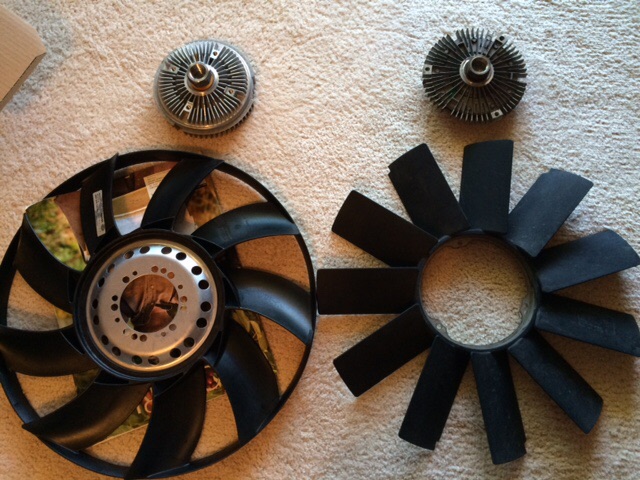

Went to order up a replacement and noted the redesigned replacement meant ordering new fan too. A no brainer, but intriguing. Well, the new goodies showed up today, and holy cooling, Batman, what a design difference. Swapping the assembly took maybe 10 min all in, so I probably doubled that by taking a couple of pics. FYI these are Behr parts if any readers are interested. About 2 bills for the 2 pieces from Pelican. Oh, and in a moment of irreverence to the manufacturer, I used my handy dandy GM Performance Parts 1 1/4 wrench.(I know, seriously?). Hell, I dunno who makes the tool, but yeah, there ya go.  I think if I had seen what the redesigned parts were, I'd have replaced the fan regardless of the fan clutch failure. Word. Civ Last edited by civdiv99; 06-19-2015 at 11:12 PM.
|
| Sponsored Links | |
|
|
|
|
#4
06-20-2015, 08:42 AM
|
||||
|
||||
|
^Me as well. The fan does look beefier/improved though, I replaced the fan clutch 3.5 years ago
__________________
2018 Ram 2500 6.7L Cummins 68RFE 19k miles -Bright White/Black - Big Horn Sport - Crew Cab Short Bed 2013 X5 35D (CEO's) - Born on 5/17/2013 - 82k miles - Alpine White/Cinnamon Brown/Premium Pkg, Sport Activity/Premium Pkg and Sound/20" Style 214/Running Boards
|
|
#6
06-20-2015, 08:01 PM
|
|||
|
|||
|
Hmm, I had no idea,. I converted mine recently to an electric fan with a temp relay. How did the new fan feel compared to the old? Was it more flimsy since it has the ring all around connecting the blades?
__________________
02 e53 X5 3.0i Manual Trans 13 e70 X5 xDrive35i 04 Honda S2000
|
|
#7
06-20-2015, 08:50 PM
|
|||
|
|||
|
I think the revised part is only for the V8 motors.
__________________
A common mistake that people make when trying to design something completely foolproof is to underestimate the ingenuity of complete fools. -Douglas Adams  2003 X5 4.6is Estoril Blue 2005 Infiniti G35X 1972 Datsun 240Z 1991 Isuzu Impulse XS Sold 1972 Fiat 850 Spyder Donated 1972 Datsun 240Z Sold 1972 Datsun 510 Sold
|
|
#9
06-20-2015, 11:28 PM
|
|||
|
|||
|
Yup, sure can. I wonder what it hit.
__________________
02 e53 X5 3.0i Manual Trans 13 e70 X5 xDrive35i 04 Honda S2000
|
|
#10
06-21-2015, 03:19 AM
|
||||
|
||||
|
JCP240Z is correct, this is an updated fan for the E53 with the V-8. Fan is BMW 17 41 7 504 732 and depending on the production date of your X5, it would require the later fan clutch. Both fan versions are 11 blade and 420 mm diameter.
Check YOUR car's VIN to know what fan clutch you presently have on your car. My (diesel M57) car has a 7 blade and 420 mm diameter fan. No cooling issues but I'll be looking to see if / how mine could be updated to have more flow for hot days and/or heavy A/C use.
__________________
2002 Euro X5 (E53) 3.0 diesel (M57) 5 speed manual with UUC short shifter. Pre-xDrive NV125 transfer case (chain & gears). Factory Xenon headlights, Spyder LED tail lights Updated vortex crankcase breather. Motorsport dead pedal, factory fire extinguisher, factory first aid kit, factory F&R mud flaps, factory PDC Bilstein B6 shocks F&R Redline oil has replaced "lifetime" fluids (F&R diff, manual transmission, transfer case and P/S). Dimple magnetic drain plugs in all compartments.
|
|
