  #11
Old 04-21-2010, 11:03 PM
Member

Join Date: Mar 2010
Location: southern california
Posts: 18
jdsilvaca is on a distinguished road
I use Pentosin Synthetic ATF Fluid for the transfer case and my transmission. I have a 2002 X5 3.0i I try to change the fluids every 30,000 miles. I will take some pics of the fill and drain plugs and post them on here.
Reply With Quote

Sponsored Links

  #12
Old 04-22-2010, 01:09 AM
X5 Meister's Avatar
Premier Member

Join Date: Mar 2006
Location: Nordschleife
Posts: 5,486
X5 Meister is on a distinguished road
Post # 17
X-Drive Maintenance???
Reply With Quote
  #13
Old 08-23-2012, 12:57 PM
Member

Join Date: Dec 2009
Location: usa
Posts: 202
mysweetx5 is on a distinguished road

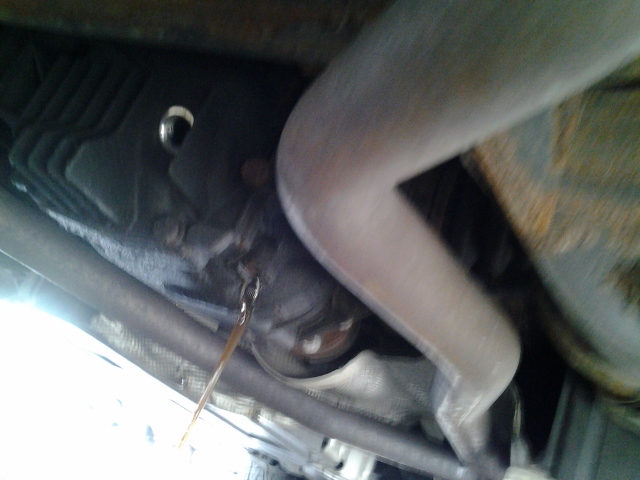

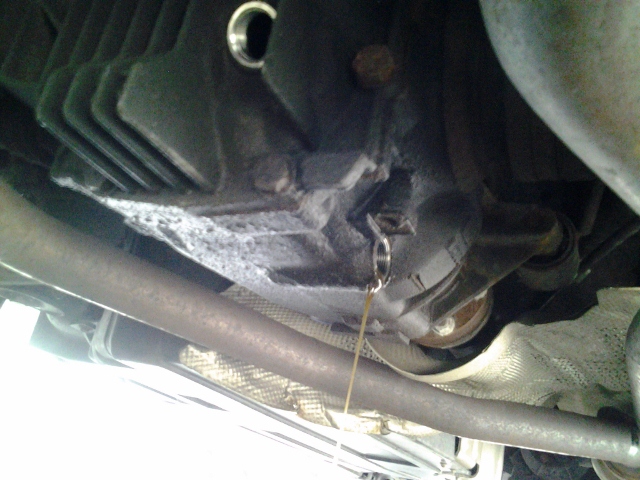

Rear differential fluid changed

Once this service has never been done in the car, I decided to change
the fluid with fresh (Red line 75/90). I ordered 3quarts from Bavauto.com
and said why not sharing a few pics with some viewers.

All you need as tools is a: 14mm hex whatever how they called it,

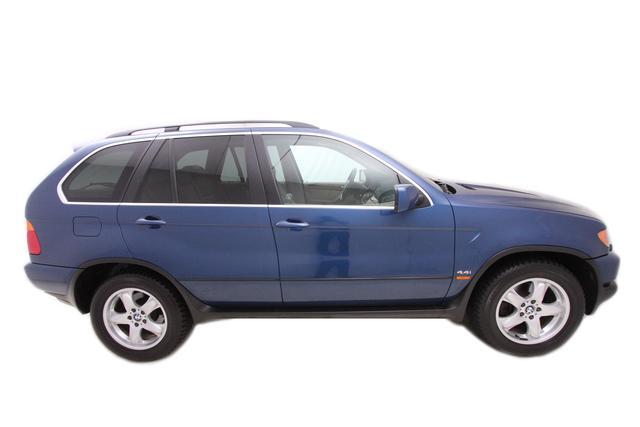

any Fluid pump will do the tric and a rachet. The car is a 01 X5 4.4i
with 124,813 mileages and this service has never been done in the past.

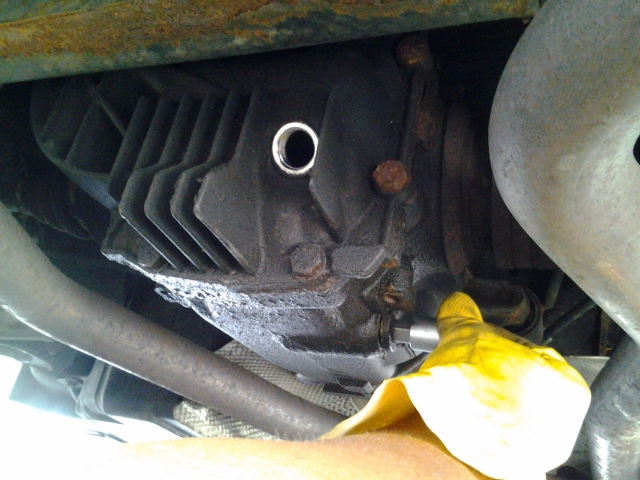

By the way, removing the fill plug/drain plug was easy as helllllll
If all services was that easy to access, mechanic shop would have
strangled to death to survive. However I'm glad and confident with

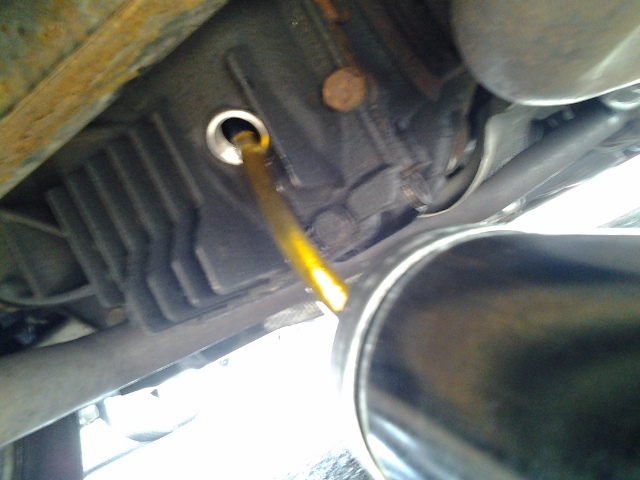

the new fluid changed because compare to the Old dirty brown fluid
that came out from the differential, with the fresh red line yellow
color that being filled-up tells it all.
Attached Images

Reply With Quote
  #14
Old 08-23-2012, 01:13 PM
TiAgX5's Avatar
Member

Join Date: Oct 2010
Location: Coppell,TX
Posts: 2,005
TiAgX5 is on a distinguished road
Yeah, it needed it. The stuff that came out looks like coffee w/ cream. Shot/spent fluid!
__________________
'03 X5 4.4 Sport, last of the M62s (8-03 build date)
I believe in deadication to craftmanship in a world of mediocrity!
Reply With Quote
  #15
Old 08-23-2012, 08:38 PM
Member

Join Date: Jan 2012
Location: United States
Posts: 150
cncmastr is on a distinguished road
Quote:
Originally Posted by naka View Post
I believe fluid is different if you have an X-drive transfer case. IIRC, it would be from 2004 on. TIS recommends BMW transfer case in this situation.
Yup, there is special BMW Transfer Case Fluid that you should use. You also need to program the computer to reset the parameters that you flushed the fluid.
__________________
E46 M3 | E30 318is x 2 | E53 X5 4.8is

Reply With Quote
  #16
Old 08-23-2012, 08:44 PM
Member

Join Date: Oct 2011
Location: NYC
Posts: 3,664
SlickGT1 is on a distinguished road
Quote:
Originally Posted by cncmastr View Post
Yup, there is special BMW Transfer Case Fluid that you should use. You also need to program the computer to reset the parameters that you flushed the fluid.
+1, but only applies to x-drive units in 2004-2006 model years.
__________________
2006 4.8is, Black on White.

"The older we grow the greater becomes our wonder at how much ignorance one can contain without bursting one's clothes." - Mark Twain

Unlock OBC post 5
Reply With Quote
  #17
Old 08-23-2012, 09:05 PM
Member

Join Date: Jan 2012
Location: United States
Posts: 150
cncmastr is on a distinguished road
Quote:
Originally Posted by SlickGT1 View Post
+1, but only applies to x-drive units in 2004-2006 model years.
Ah, I didn't know that. Good to know!
__________________
E46 M3 | E30 318is x 2 | E53 X5 4.8is

Reply With Quote
