How to replace Engine Valve Cover Gasket for X5 4.4?

Hello everyone,
I have X5 4.4 2002 early model with 125K miles.
Last weekend I replaced the spark plugs and noticed some engine oil sitting around plug 7 and 8. not much though. I managed to clean it and replaced all with new plugs.
Question here is: Do anyone of you know how (DIY) to replace the valve gasket on 4.4 model?

I managed to took all 11 screws out but I could not remove the valve cover to remove the gasket, do I need to remove the plugs as well?

Last edited by ahadi; 09-10-2009 at 02:02 PM.
Reply With Quote

Sponsored Links

  #2
Old 09-10-2009, 01:59 PM
X5Flyboy's Avatar
Premier Member

Join Date: Jun 2005
Location: ID, and a world of my own
Posts: 2,246
X5Flyboy is on a distinguished road
earlier post with pics somewhere here - not just valve cover, but valve gaskets need to be replaced - just had that done at my Idaho dealer - will stop by my dealer to find out what needs to be removed for access
__________________
Mark _______________________________
2001 X5 4.4i topaz blue/sand Sport, complete Dinan S2 , hitch, V1, tint, BSW Stage 1, Alpine INA-W900BT
___________
Life is not fair!
You can't protect people from their own stupidity!
Laughter makes life worth living
Reply With Quote
  #3
Old 09-10-2009, 02:04 PM
Member

Join Date: Mar 2007
Location: WA
Posts: 12
ahadi is on a distinguished road
Did you have to replace both or just one side? if you don't mind, how many hrs did the dealer charge on labor?
Thanks
Reply With Quote
  #4
Old 09-10-2009, 02:18 PM
X5Flyboy's Avatar
Premier Member

Join Date: Jun 2005
Location: ID, and a world of my own
Posts: 2,246
X5Flyboy is on a distinguished road
have to look that up, but I don't think they broke it down - reason?..., my Idaho dealer gives me some price breaks (or at least the service mgr & mechanic do) - had that done with spark plugs, fuel filter ($208), both differential service, brake service, radiator flush, tranny service, and replaced broken rear door lock ($341) for a total of $1616. individual prices are what I can remember from original workup, plus labor rate is less out here. they had it for 5 days, as some parts needed to be ordered - will get the bill from the car later and will post what I can here

of, yeah, some hoses also - the ones behind the 4.4 engine (2- ~30mm dia) 2nd time for these as they wear out from the inside (42k & 104k) - to check yours, feel if they are flexible and feel soft, then they need replacement - believe these are coolant hoses
__________________
Mark _______________________________
2001 X5 4.4i topaz blue/sand Sport, complete Dinan S2 , hitch, V1, tint, BSW Stage 1, Alpine INA-W900BT
___________
Life is not fair!
You can't protect people from their own stupidity!
Laughter makes life worth living

Last edited by X5Flyboy; 09-10-2009 at 02:24 PM.
Reply With Quote
  #5
Old 09-10-2009, 02:30 PM
sarb's Avatar
Member

Join Date: May 2009
Location: Calgary, CANADA
Posts: 223
sarb is on a distinguished road
Hi Ahadi try this link its same as e39 v8 4.4

Covers
__________________
2004 E53 4.8is parked from Jan 26 2011
And Sold on feb 20 2013 for $ 31k with 44k kms

New ride Mini 09 JCW 16k kms.
Go cart ride I love it and its fast, after all its BMW
Weekend / fun car but not daily driver.

My daily driver
2011 Audi S5 V8 Sold

Current:
2013 Audi S5 3.0T and I love it for winter driving.

Future car:
????????????? Has to be Germany AGAIN
Reply With Quote
  #6
Old 09-10-2009, 04:59 PM
Member

Join Date: Mar 2007
Location: WA
Posts: 12
ahadi is on a distinguished road
I will give it a try.
Thanks
Reply With Quote
  #7
Old 09-10-2009, 05:17 PM
X5Flyboy's Avatar
Premier Member

Join Date: Jun 2005
Location: ID, and a world of my own
Posts: 2,246
X5Flyboy is on a distinguished road
okay, got the bill (still have to get to the dealer) - right front valve cover gasket was leaking (+ 100k tuneup)

spark plugs, distributor for trans. fluid, fuel filter w/ pressure re., brake fluid, antifreeze, door lock w/motor actuator, torx-bolts w/washer, clip natur(?), water hose, rubber seals, one set of profile gaskets = $683 parts + $868 labor, then tax & misc +$1616

the workup prices included parts & labor, so the door lock was $215(p) + $126(L) = $341

fuel filter $107(p) + $101(L)

mostly I don't quibble over prices, they have a standing order from me to replace anything that is marginal, or due to be replaced - work consisted all in the above post plus transfer case service
__________________
Mark _______________________________
2001 X5 4.4i topaz blue/sand Sport, complete Dinan S2 , hitch, V1, tint, BSW Stage 1, Alpine INA-W900BT
___________
Life is not fair!
You can't protect people from their own stupidity!
Laughter makes life worth living
Reply With Quote
  #8
Old 09-10-2009, 07:04 PM
amacman's Avatar
Member

Join Date: May 2008
Location: glasgow,scotland
Posts: 1,460
amacman is on a distinguished road
hold the phone chaps ,
there are more diy`s on e38 tips and tricks , link is on this forum home page .

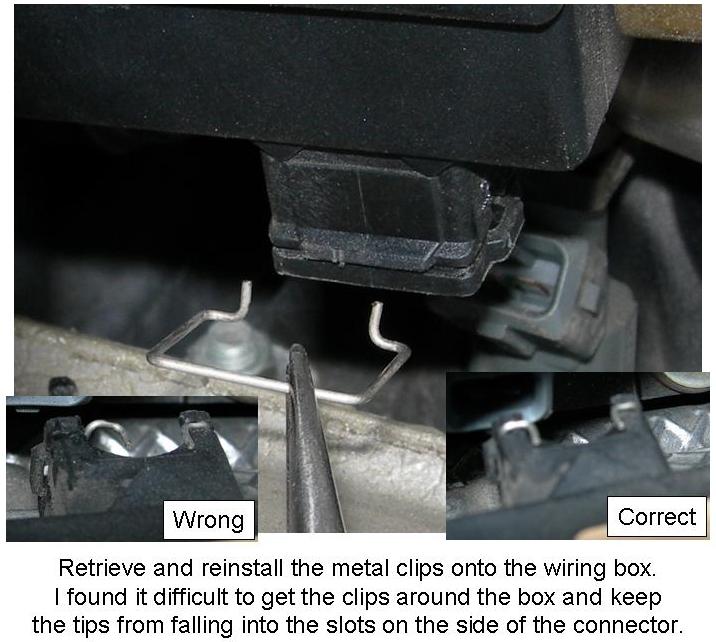

here is a pic showing the clips that hold the connector box to the injectors , better pics are on the link .
ok found all relevant pics so here ya go and good luck.
Attached Images

Reply With Quote
  #9
Old 09-10-2009, 11:10 PM
Member

Join Date: Mar 2007
Location: WA
Posts: 12
ahadi is on a distinguished road
Thank you all!!!
I will give it a try.
Reply With Quote
  #10
Old 05-24-2012, 12:38 AM
mgbmwx5's Avatar
Member

Join Date: Mar 2010
Location: Granite Falls, Wa.
Posts: 276
mgbmwx5 is on a distinguished road
Quote:
Originally Posted by amacman View Post
hold the phone chaps ,
there are more diy`s on e38 tips and tricks , link is on this forum home page .
here is a pic showing the clips that hold the connector box to the injectors , better pics are on the link .
ok found all relevant pics so here ya go and good luck.
Thanks for the write up!
