Help 4.6 or 4.8 owners

nigwhyrito · #1 05-11-2011, 04:09 PM

Please help trying to find any info on these 2 rear seat connectors.
I have the male end but I need thefemale end.
If your 4.6 or 4.8 has rear heated seats please lift the rear seat up and grab any info you can off the female end of the connector... My parts guy cant find it.

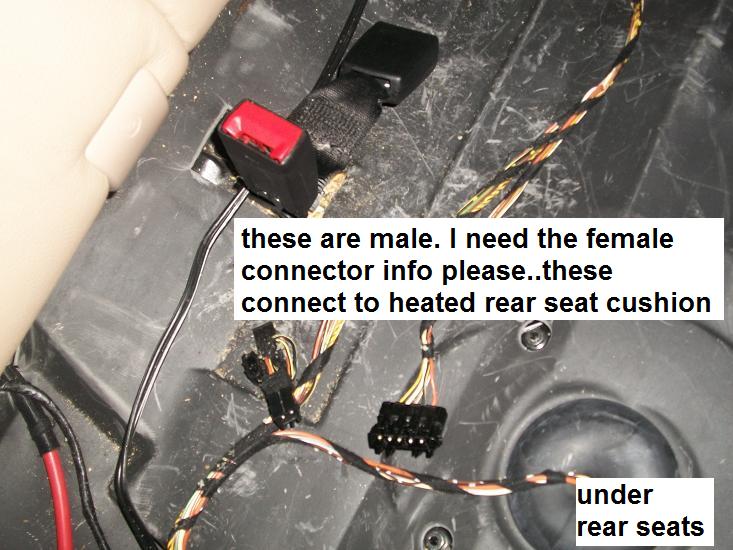

I'm about to hit some junkyards up when weather gets better. Attached pics to show what I need. Thanks

Sponsored Links

Gixxerboy63 · #2 05-11-2011, 07:09 PM

Just to clarify. You have the original connectors lying underneath the seats that are affixed to the vehicle wiring harness, but no connector coming from the seat cushion that would attach to it... (or is it the other way around?)

nigwhyrito · #3 05-11-2011, 07:50 PM

that is correct gixxerboy63.. I do not have the connector coming from the cushion..that is what I consider the female end.
there is a 5 pin connector and a 2 pin i dont have the ends comming from the cushion.

Gixxerboy63 · #4 05-11-2011, 09:13 PM

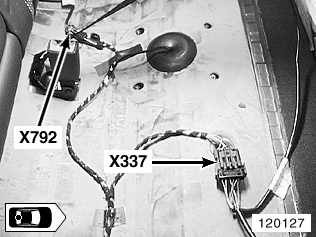

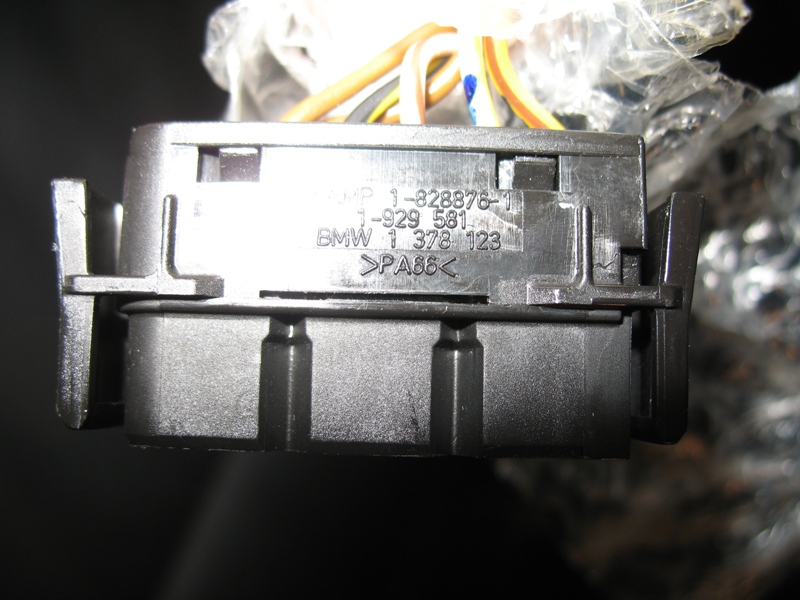

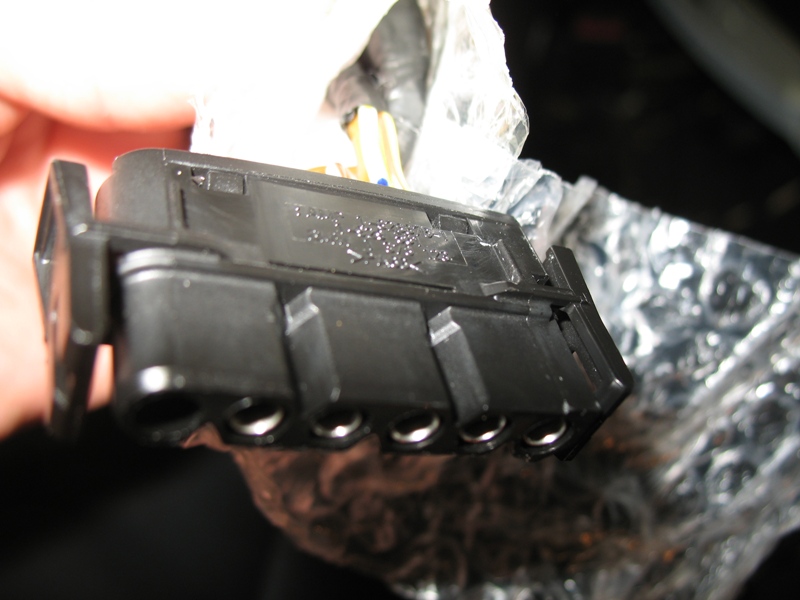

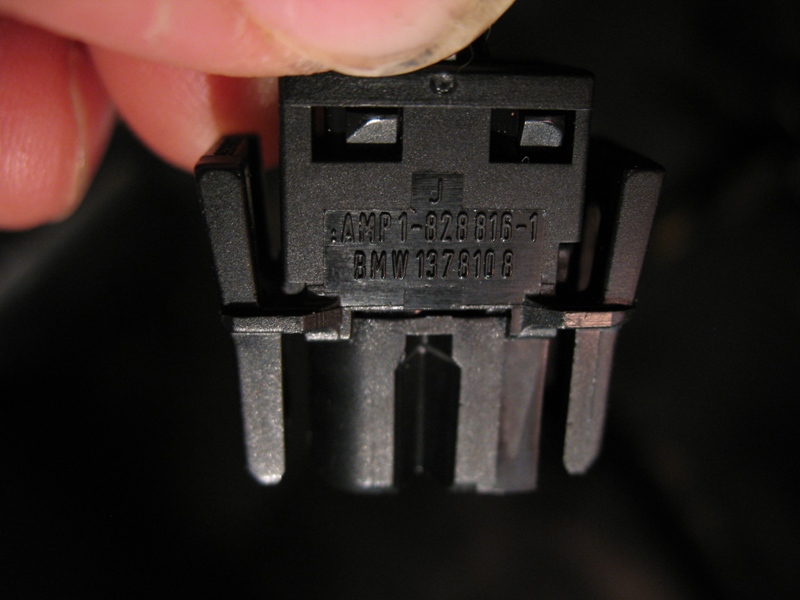

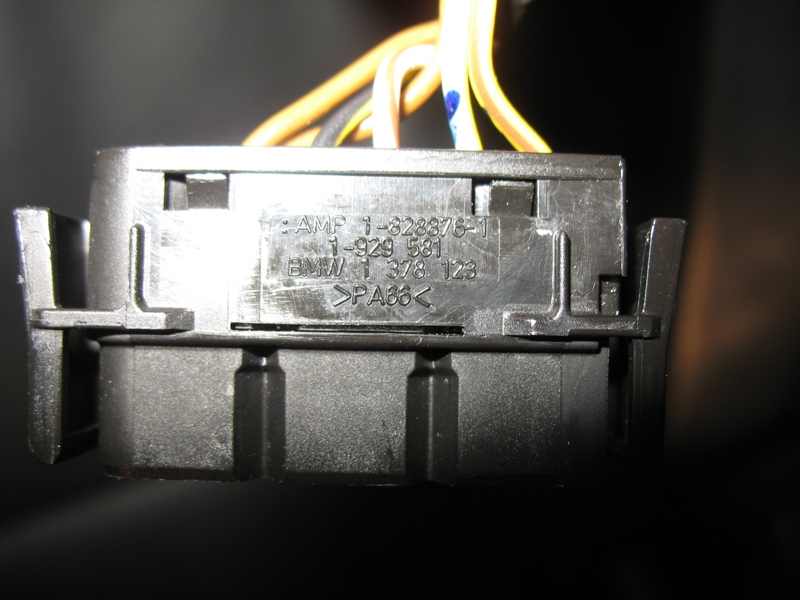

Ok... here ya go. Hope this is helpful.

Gixxerboy63 · #5 05-11-2011, 09:22 PM

thanks for asking me to look under my seat... there's a lot of stuff hidding under there that needs to go! 9 years accumulation of pens, coins, french fries and who knows what else?

nigwhyrito · #6 05-11-2011, 09:48 PM

you the Poop (edited)

gixxerboy63

taking this info to parts man tommorow and googling them parts now...

Jordo · #7 05-11-2011, 10:09 PM

FYI every single X5 has heated rear seats. Not just the "IS" models.

nigwhyrito · #8 05-11-2011, 10:19 PM

Uhmm maybe I dont understand your post Jordo... But If every single x5 has rear heated seats then I wouldn't be asking for the part number for the female connector end. I know on the 3.0 and possibly the 4.4 heated rear seats are not default installed, its and optional addon package.
I do know most 4.6 and 4.8 X's i seen have the option already installed ...It was part of the comfort or cold weather climate package if I can remember correctly.If your 4.4 has it then I am so sorry for not including the 4.4 in my post title. I have NA 3.0 06 and it doesnt have the female end ... Because I dont have rear heated seats....YET...wip

nra0707 · #9 05-12-2011, 01:52 PM

Quote:

Originally Posted by nigwhyrito

Uhmm maybe I dont understand your post Jordo... But If every single x5 has rear heated seats then I wouldn't be asking for the part number for the female connector end. I know on the 3.0 and possibly the 4.4 heated rear seats are not default installed, its and optional addon package.
I do know most 4.6 and 4.8 X's i seen have the option already installed ...It was part of the comfort or cold weather climate package if I can remember correctly.If your 4.4 has it then I am so sorry for not including the 4.4 in my post title. I have NA 3.0 06 and it doesnt have the female end ... Because I dont have rear heated seats....YET...wip

Ditto. Maybe he meant every X5 has the "option" to have rear heated seats, and possibly all the wiring harnesses in place.

If you find the connectors, send me a PM, maybe we can work out a way of buying a couple connectors off you. My local dealer seems a bit retarded and somewhat aloof when it comes to part searches. Went through this exercise with limited success.

nigwhyrito · #10 05-12-2011, 04:16 PM

well good news and bad news.. just got to love those german engineers.. So the part is not even listed for an x5.. them engineers purged it from documentation and gave it a new number.. But after 1 hour we found the part... Oh yeah that was the good news.. now the bad news..
total cost.. $117.49
parts FROM STEALER SHIP AND BEING DELIVERED FROM GERMANY-- 3 WEEK WAIT..
61-13-1-378-108 |socket housing , bla |QTY 1 |PRICE 4.70 | TOTAL $4.70
61-13-8-352-316 |UNIVERSAL SOCKET HO | QTY 2 |PRICE 31.22| TOTAL $62.44
61-13-0-007-449 |SNAP IN RECEPTACLE | QTY 5 |PRICE 6.55 | TOTAL $32.75
61-13-1-376-204 |SNAP IN RECEPTACLE | QTY 4 |PRICE 3.00 | TOTAL $12.00
tax 5.60
TOTAL = 117.49
So I paid for it and currently looking for alternative so I can cancel the order.. I have googled the actual AMP PART NUMBER AND FOUND SOME COMPANIES but they want a minium order of 200 - 400 bucks. ..
Currently waiting on this company to get back with me.. they look like I can get just the parts in the quanity I want.
Welcome to Automotive Wiring Systems
This is if you want to go completely OEM.. I should have just went with 1, 5pin molex connector and 2 2pin molex connector set from mouser or digikey I just had to make it look stock.. dangit.

now using the web i found some other sites using the bmw part numbers...BMW Parts, Accessories & Genuine BMW OEM Parts @ bmwpartsunlimited.com same qtys
Total:$55.19 Estimated Shipping: $9.00
