#41
|
|||
|
|||
Can you just check that you don't have the black orifice disc and the sort of 'translucent purple' one transposed? Phil |
Sponsored Links | |
|
#42
|
||||
|
||||
Hi Phil,
Ummm..which part number(pics)? Thanks, Rodel |
#43
|
|||
|
|||
The black disc has a 1.5mm orifice and the ‘translucent purple’ disc has a 1.2mm orifice. It’s possible, of course, that the 4.6iS ‘034’ model has these orifice discs in a different order to the 4.4i ‘029’ model so you may well have these the correct way round – it’s just different to what I’m used to. Thought I’d better just check with you, though.
Phil |
#44
|
||||
|
||||
Hi Phil,
first 2 pics is when I dis-assembled the body and the last 2 - followed the guide that came with the kit..also noticed that they change the purple one with a big hole to orange, which one to follow?? also when I went to the tranny shop to have the spring taken out of the cylinder D, they told me that reman TC doesn't last long i.e. whining sound(which i have before) blah blah blah yada yada yada, are they "BSing" me? i think they just pissed coz' i didn't get charge for taking the spring out lol..what's your experience on them?? thanks, Rodel |
#45
|
||||
|
||||
cylinder D
snap/spring is out, finally...
|
#46
|
|||
|
|||
The ZF 5HP24 torque converters don’t have anywhere near as bad a reputation as the GM 5L40-E ones used in the 3.0 litre diesel models but, nevertheless, I always get mine remanufactured when I’m doing a rebuild. I’ve never had any problems/complaints with remanufactured units (done by an approved ZF supplier) yet.

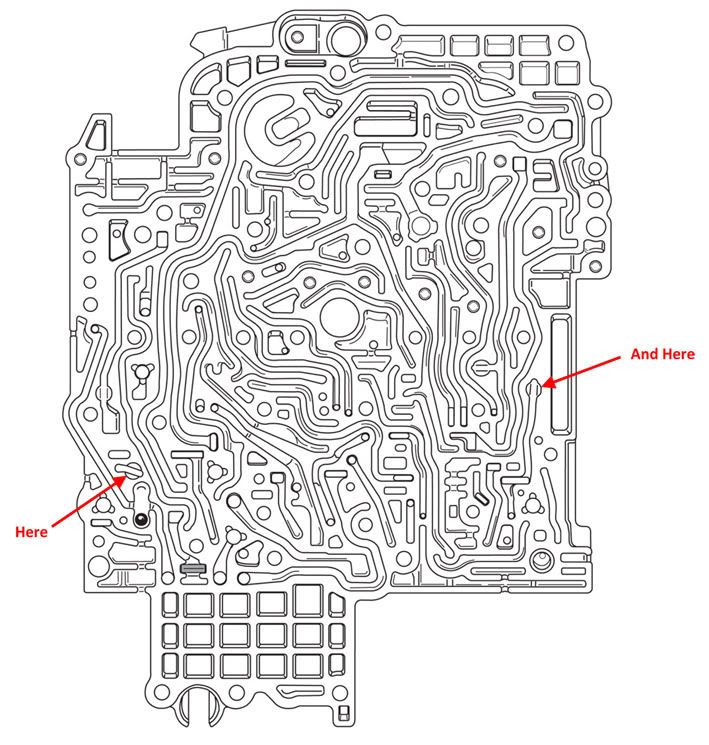

Regarding the little coloured orifice discs, I know that the 2.2mm orange one (for the E-brake = 27.024) was a white one at an earlier point so I guess these were continuously in development to give the best shift/engagement feel. Similarly they must have changed the orifice sizes for the 4.6iS as the F-brake exhaust (lower LH side in my diagram) used to use 27.034 which is the black 1.5mm orifice disc and the A-clutch orifice (on the RH side) was 27.040 which is a 1.2mm orifice (translucent purple). I’m sure you’ve already done this but, just in case, you need to knock out the centre sleeve of the D/E-brake drum to check the O-rings which seal the sleeve for the C-clutch supply for reverse. I’ve attached a couple of pictures below regarding one that I’d repaired in the past. New O-rings are included in the overhaul kit. Phil |
#47
|
||||
|
||||
thanks Phil
so i guess the valve body and TC is good to go... here's mine... |
#48
|
||||
|
||||
Brake F with freewheel, 1st gear
assembling Brake F with freewheel, 1st gear..
|
#49
|
||||
|
||||
Excellent thread... thank you for the updates/pictures/information.
Greatly appreciated!
__________________
Previously owned: '03 4.6iS Dinan Supercharged |
#50
|
||||
|
||||
Brake F with freewheel, 1st gear
more pics..
|
