Water leaking from the top center console in heavy rain

Hi guys,

A few months ago, after X5 sitting under heavy rain over night, when I started to drive the car in the morning I noticed a few drops of water dripping from up top, and when I looked, I saw some wet spots around the sunroof button. I thought may be it was condensation and left it at that, especially since it didn't drip again that day, and we have had sunny weather ever since.

Well, today was the first day of stormy/heavy rain weather here in San Jose, and my car was parked outside all day at work. The same thing happened when I returned to the car... it dripped only during my first brake and first turn. Again, these were only a few drips (3-5 tops.)

I have read some other threads on this and I am not clear whether it is the whole sunroof (hope not, out of warranty), or whether it is the drain tubes being kinked or clugged.

I am worried this may cause some electrical short or something, so I parked the X5 indoor for tonight and parked my wife's 328i outside.


Any suggestions on where to start looking? should I start from the center console, or A pillar covers?

Any suggestion on easy fixes for this, if indeed the problem is 'just' a kinked tube?

Thanks for your advice.
__________________
Currently driving: 2011 E70 x35i , 2011 E90 335d
Previous BMWs: 2007 E90 328i , 2005 E53 3.0i, 2011 F10 535i (6spd manual)
Reply With Quote

Sponsored Links

  #2
Old 10-14-2009, 12:49 AM
simoncpw's Avatar
Member

Join Date: Jun 2005
Location: X5 world
Posts: 528
simoncpw is on a distinguished road
This might be able to help you. Good luck.
__________________

Here's the Photo Album of my (sold) X3; Album of my (newish) X5 is on the way!
(WARNING: read this before you buy anything from Umnitza)
Reply With Quote
  #3
Old 10-14-2009, 01:36 AM
Member

Join Date: Sep 2008
Location: 905/416
Posts: 12
elyk is on a distinguished road
had the same issue, took it to dealer they couldn't find anything.
i believe this has only happened to me after heavy rain fall. went through many car washes and other rainy days but nothing has turned up in awhile.
let me know if you find the problem/solution
Reply With Quote
  #4
Old 10-14-2009, 05:22 AM
X5rolls's Avatar
Member

Join Date: Sep 2008
Location: Maryland
Posts: 1,693
X5rolls is on a distinguished road
Quote:
Originally Posted by simoncpw View Post
This might be able to help you. Good luck.

Good link - I had clogged sunroof drains - dealer cleaned them out under warranty and all is good now. Only had one leak once but water was coming in around the ceiling console in the front.
Reply With Quote
  #5
Old 10-14-2009, 08:05 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
Yep, I'd bet dollars to peso's that your front drains are clogged. Use the info in that thread simoncpw linked to clear the drains, then puor water in the top with the glass open to make sure the drains are flowing properly. (you should actually do this before and after to double check the diagnosis and fix)
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #6
Old 10-14-2009, 09:38 AM
killcrap's Avatar
Member

Join Date: Mar 2009
Location: america
Posts: 1,508
killcrap is on a distinguished road
i'll bet the sunroof cassette is warped. the coorection from bmw is to install foam padding to absorb the water. the real way to fix it is to replace the frame.
Reply With Quote
  #7
Old 10-14-2009, 09:57 AM
Member

Join Date: May 2008
Location: San Francisco
Posts: 353
dragoncoach is on a distinguished road
Quote:
Originally Posted by killcrap View Post
i'll bet the sunroof cassette is warped. the coorection from bmw is to install foam padding to absorb the water. the real way to fix it is to replace the frame.
Just curious, if the dealer added foam padding to absorb the water, isn't it still leaking? This doesn't seem like a fix unless the the dealer is using foam tape as a gasket. My suggestion to the op is to let the dealer look at it If the X is under warranty. Plenty of dealers in the SJ area.

Last edited by dragoncoach; 10-14-2009 at 03:15 PM.
Reply With Quote
  #8
Old 10-14-2009, 12:00 PM
faz faz is offline
Member

Join Date: Nov 2008
Location: Bay Area, CA
Posts: 553
faz is on a distinguished road
Thank you all so much for the suggestions, and simoncpw for the link. I tried my best searching for that thread, as I had seen that before, but a search on 'leak' or 'leaking' or 'pano' or ... on the title of the threads did not result in it. That now makes sense, since the title is 'water in my...'

I certainly hope this is the case, and thinking about it now, if the drains are plugged at the bottom (as Weasel suggests in that thread), then kinda makes sense... since this has happened only under heavy rain conditions with car parked for over a few hours outside. I assume a slight leak would drain down and start to fill up the drain hose and finally when it is full, it starts to show up in the cabin through the over head console.

I will try and get to it, and if I can, I will take many pictures and post up.

killcrap, thanks for the info on the warped cassette and BMW's foam fix. That would be my next step if it proves to be more than just a clogged passage.

I will keep you posted on the progress. If anyone else has any suggestions or things to add to this thread meanwhile, don't be shy.
__________________
Currently driving: 2011 E70 x35i , 2011 E90 335d
Previous BMWs: 2007 E90 328i , 2005 E53 3.0i, 2011 F10 535i (6spd manual)
Reply With Quote
  #9
Old 10-15-2009, 03:55 AM
faz faz is offline
Member

Join Date: Nov 2008
Location: Bay Area, CA
Posts: 553
faz is on a distinguished road
OK, so I poured some club soda at the corners and they flowed very easily through the drain holes and down under the car. There was no resistance at all, I poured the liquid from top and almost instantly it came out from the bottom.

But upon examining the front of the moon-roof, I noticed that there is (what I would consider to be a large) gap between the roof top and the roof lining on the front side. I used a flashlight and I could see through it the inside of the top console, including the moonroof switch and connector to it. The gap is about 1/8" to 1/4" all the way across, with no weather stripping or anything stopping water from getting in. So if there was any leak from moonroof, it could find its way through this gap into the top console before it finds its way down the drain.

I think I should be able to open the top console and seal the gap in that area with some sort of duct tape or some other sealing material from inside (suggestions welcome.) Even may be put a piece of foam there to absorb the little water that finds its way in through there. killcrap, is that were the foam is being placed as a workaround?

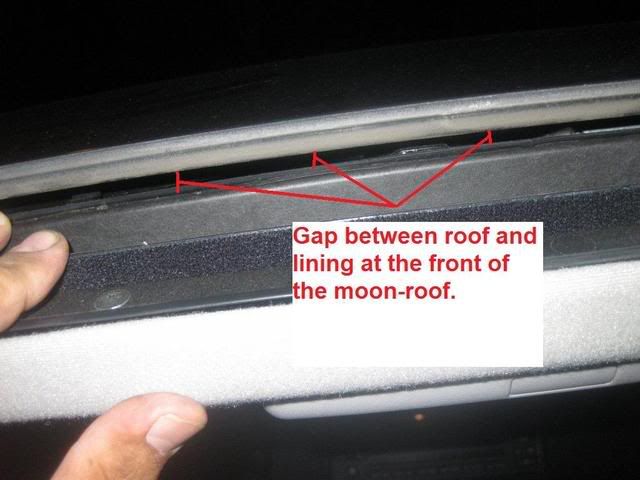

Here is the picture of the gap:






Here are some pictures for those who are interested:

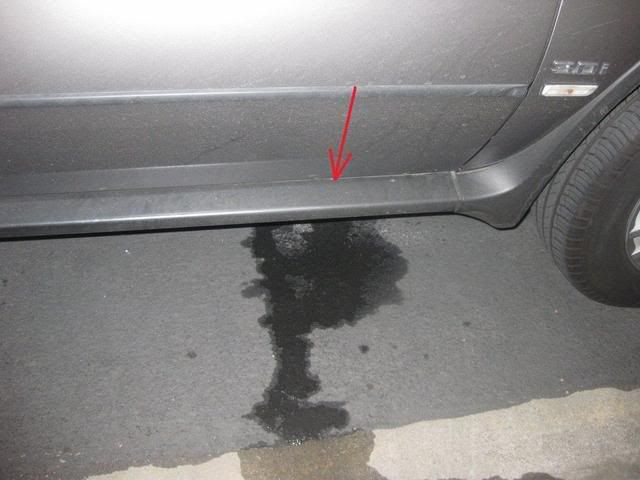

Here is the drain comes out under the car:




On the front-passenger side:

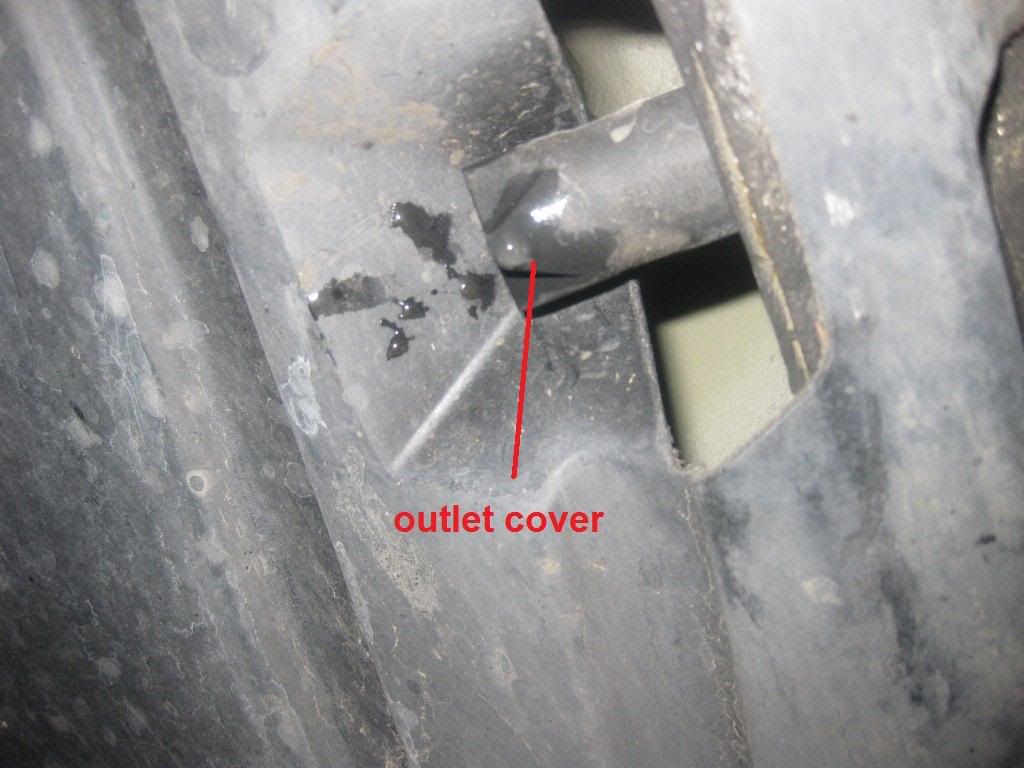

The outlet is covered by a rubber piece that has cuts at the end to open as needed:

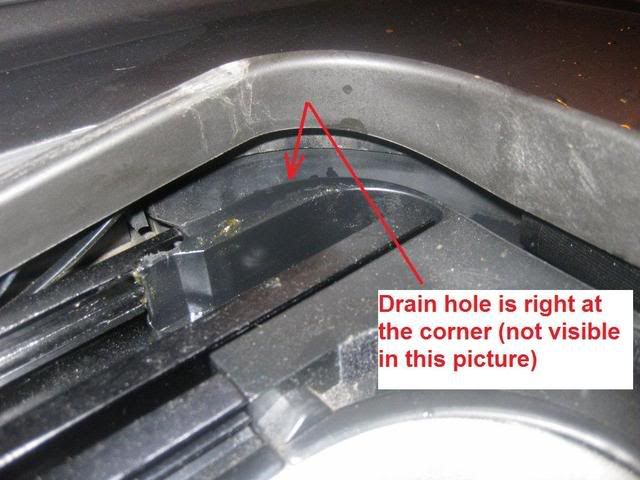

On top, the front drain holes are at both corners, its general locations is shown here but the hole itself is not visible in this picture (couldn't find an angle to take a picture of the hole... but you can't miss it when looking in that area)

__________________
Currently driving: 2011 E70 x35i , 2011 E90 335d
Previous BMWs: 2007 E90 328i , 2005 E53 3.0i, 2011 F10 535i (6spd manual)

Last edited by faz; 10-15-2009 at 02:38 PM.
Reply With Quote
  #10
Old 10-15-2009, 08:06 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
Damn, no easy way for you... looks like killcrap got the diagnosis on this one. It is the less common cause (at least down here) but still a problem.

I'd go for the foam as well as a new sunroof seal around the opening for the glass. A new seal will let less water through and let the drains keep up better.
