Cool Video on the Nav screen

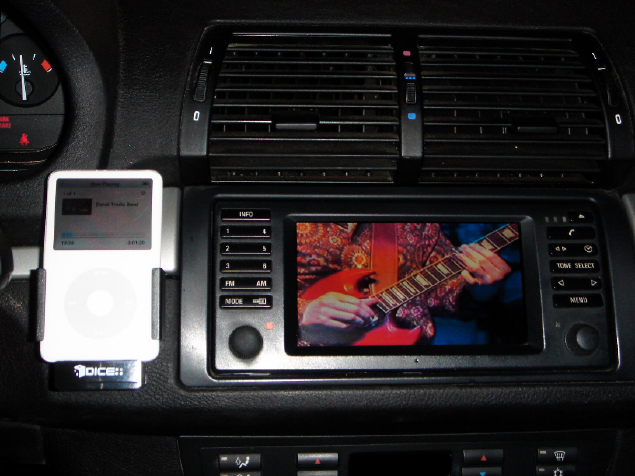

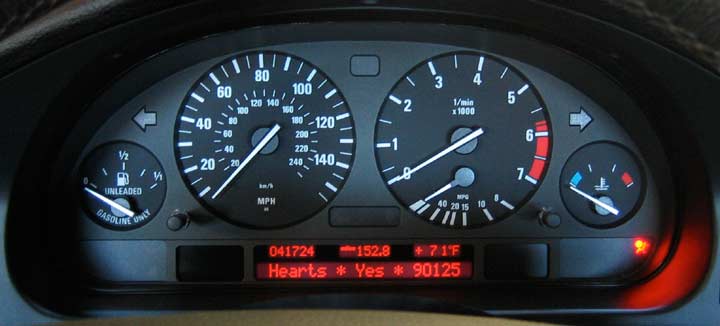

Using all "plug'n play" components, videos are easily displayed on the navigation screen. Audio plays through the Dice. Video text info is displayed on the cluster.

Devices:

First generation Dice (allows click wheel interface)

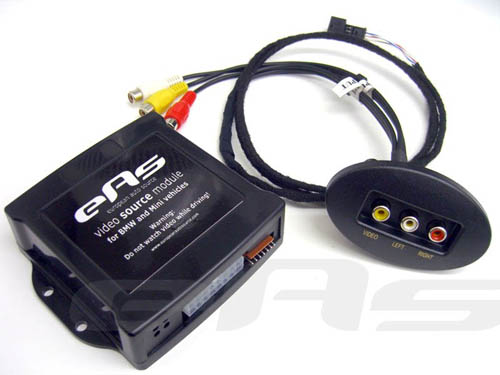

Nav video module of your choice
iPod video (The newest generation OSX iPods will NOT work with this setup)

Sources:

EAS EAS G-Net Bimmernav Soundgate
Attached Images

Last edited by zerochief; 03-04-2009 at 01:27 AM.
Reply With Quote

Sponsored Links

  #2
Old 09-19-2007, 01:18 AM
Bmer x5's Avatar
Member

Join Date: Feb 2007
Location: San Francisco
Posts: 119
Bmer x5 is on a distinguished road
Sweet mod! Are there any stores in which these items can be purchased at?

(stupid question,sorry)
Reply With Quote
  #3
Old 09-19-2007, 01:19 AM
zerochief's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 1,399
zerochief is on a distinguished road
Cool
Quote:
Originally Posted by Bmer x5
Sweet mod! Are there any stores in which these items can be purchased at?
Click the links!
Reply With Quote
  #4
Old 10-02-2007, 10:44 AM
edco's Avatar
Member

Join Date: Jul 2007
Location: Metuchen, NJ
Posts: 736
edco is on a distinguished road
Where did you put the VSM module..? What are the basic installation steps?
Thanks

ED
Reply With Quote
  #5
Old 10-02-2007, 07:57 PM
zerochief's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 1,399
zerochief is on a distinguished road
Cool

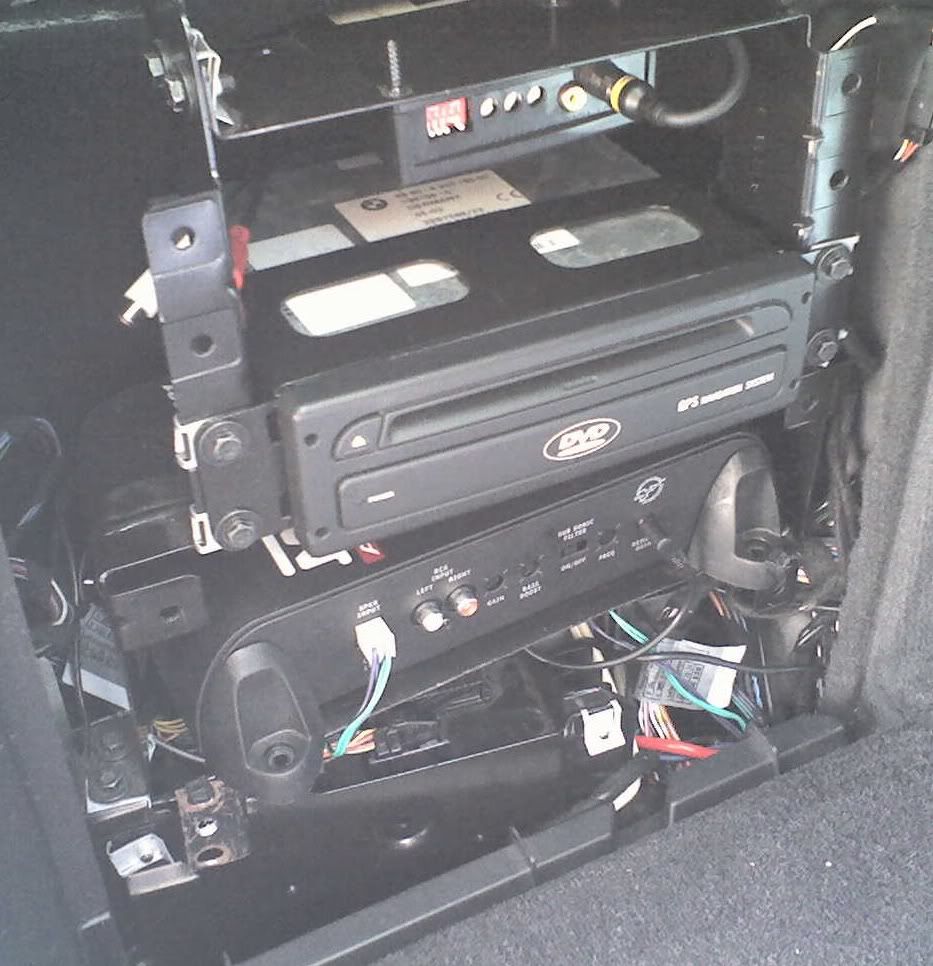

You need to tap power, install a simple cable adapter and run the video cable where you want it. In my case, the dash area. Its a small item to mount - I put mine here:
Last edited by zerochief; 03-04-2009 at 01:30 AM.
Reply With Quote
  #6
Old 10-23-2007, 02:56 AM
zerochief's Avatar
Member

Join Date: Apr 2006
Location: USA
Posts: 1,399
zerochief is on a distinguished road
Cool
Quote:
Originally Posted by Aimster
Zerochief can you post a close-up pictures of your IPOD?

I love how it is standing like that. I want to do what you did

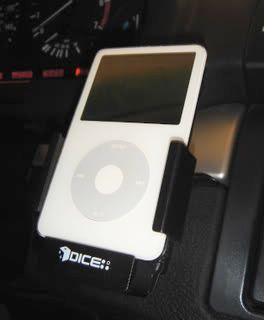

OK its hard to see from this pic, but I made a custom bracket with a bending tool.

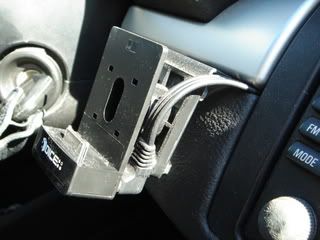

New pics shot today with iPod and snap-in removed:



Its something like the panavise bracket p/n 75103-600 (but different to mount on the left side of the nav).
Last edited by zerochief; 10-23-2007 at 03:18 PM.
Reply With Quote
  #7
Old 10-23-2007, 01:09 PM
Tom G.'s Avatar
Member

Join Date: Aug 2005
Location: X5world
Posts: 3,228
Tom G. is on a distinguished road
Can't even see the bracket - nice and stealth.
__________________
Tom G. | european auto source (eas)
email: [email protected] web: www.europeanautosource.com
tel 866.669.0705 | ca: 714.369.8524 x22 | fax: 714.908.1796

Twitter | Flikr | Facebook | YouTube
Reply With Quote
  #8
Old 10-27-2007, 02:12 PM
ljnlaw's Avatar
Member

Join Date: Dec 2005
Location: The Land of REAL Cheese Steaks...And the home of the 2008 World Series Champion Phillies
Posts: 1,568
ljnlaw is on a distinguished road
Beautifully done ZC, and good choice in music as well!
__________________
EDELSTEIN MARTIN & NELSON
www.law-pa.com
www.insurancedisabilitylawyer.com
Reply With Quote
  #9
Old 11-22-2007, 04:27 PM
jammykam's Avatar
Member

Join Date: Apr 2006
Location: Surrey, UK
Posts: 42
jammykam is on a distinguished road
And for those of you with OEM tuner...

http://forum.e46fanatics.com/showthread.php?t=461066


///Kam
__________________
Reply With Quote
  #10
Old 07-01-2008, 03:08 PM
Member

Join Date: Jan 2008
Location: Boston
Posts: 11
illegitimus is on a distinguished road
thank you, zerochief!
