  #1
Old 02-12-2011, 12:07 AM
Member

Join Date: Feb 2011
Location: Chattanooga, TN
Posts: 327
o. l. t. is on a distinguished road
Shaking loose side folding mirror torx bolt pics

I read through several threads, but none had pics. As a newer owner I'd like to have found some, but the search terms didn't find any searching "loose, shaking, mirror" in any combination.

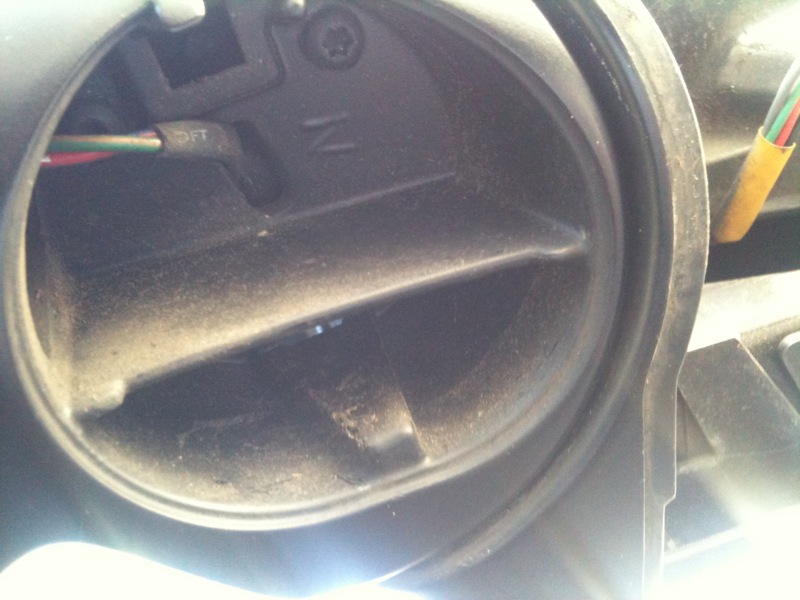

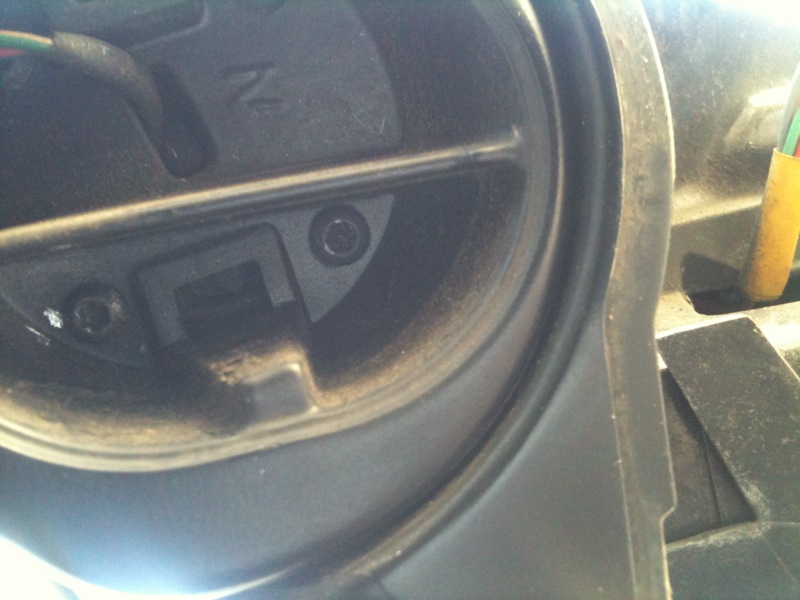

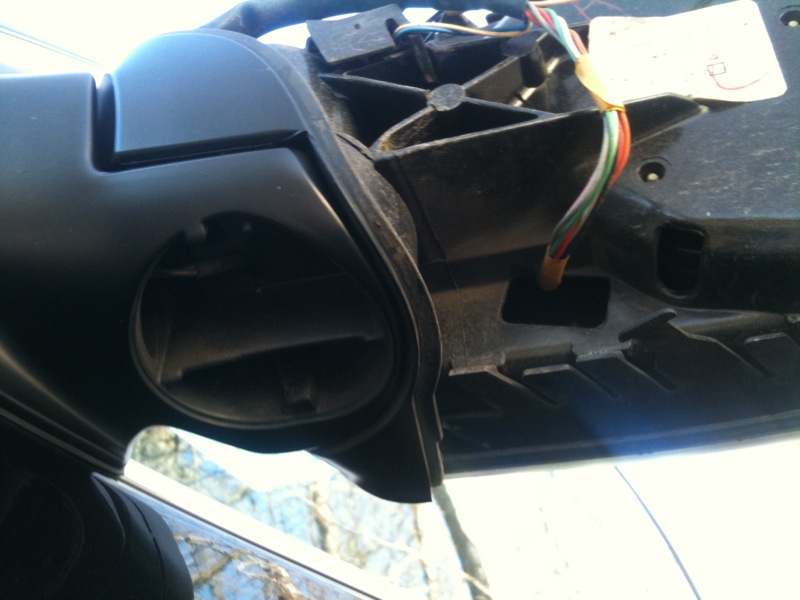

These are the 4 small torx that you have to tighten if your mirror is loose or shaking. Simply pop the bottom circular panel off the mirror housing to access them. Removing the mirror housing cover is not necessary.
Attached Images

__________________
~2003 X5 4.4i~

Last edited by o. l. t.; 02-12-2011 at 11:29 PM.
Reply With Quote

Sponsored Links

  #2
Old 02-12-2011, 12:29 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
T15 actually
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #3
Old 02-12-2011, 12:48 AM
Member

Join Date: Feb 2011
Location: Chattanooga, TN
Posts: 327
o. l. t. is on a distinguished road
That's what it says.........


__________________
~2003 X5 4.4i~
Reply With Quote
  #4
Old 02-12-2011, 09:37 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
I see what you did there
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #5
Old 02-12-2011, 09:48 AM
blktoptrvl's Avatar
Member

Join Date: Nov 2007
Location: Various
Posts: 1,229
blktoptrvl is on a distinguished road
OK, I am guessing that this is how so many mirrors are being stolen cleanly... I'm thinking I should change out my bolts to something non-standard. What are the specs for the bolts?
__________________
2006 X5 Sport 4.4i
Reply With Quote
  #6
Old 02-12-2011, 09:54 AM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
Not sure of the thread size/pitch, but it would be metric for sure. You can likely just pull one out in the parking lot of a hardware store and bring it in to match up. Maybe switch to security torx or some other security bit?
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
  #7
Old 02-12-2011, 10:03 AM
blktoptrvl's Avatar
Member

Join Date: Nov 2007
Location: Various
Posts: 1,229
blktoptrvl is on a distinguished road
Quote:
Originally Posted by Weasel View Post
Not sure of the thread size/pitch, but it would be metric for sure. You can likely just pull one out in the parking lot of a hardware store and bring it in to match up. Maybe switch to security torx or some other security bit?
Yes, this is what I'm thinking about. In the long run, if someone cannot easily swipe a mirror, they might instead destroy it out of anger. But I would rather that, then let them get away with the clean theft.
__________________
2006 X5 Sport 4.4i
Reply With Quote
  #8
Old 02-12-2011, 10:10 AM
Member

Join Date: Jan 2011
Location: Royal Berkshire, England
Posts: 210
Sundayjumper is on a distinguished road
Quote:
Originally Posted by o. l. t. View Post
These are the 4 torx (#15) that you have to tighten if your mirror is loose or shaking.
Sweet ! A loose passenger mirror was about halfway down my to-do list. Just been out and done it

FWIW, it was a T10 on mine.
Reply With Quote
  #9
Old 02-12-2011, 11:07 AM
Member

Join Date: Feb 2011
Location: Chattanooga, TN
Posts: 327
o. l. t. is on a distinguished road
Quote:
Originally Posted by Sundayjumper View Post

FWIW, it was a T10 on mine.
I KNEW IT~!!!!! Weasel...............


__________________
~2003 X5 4.4i~
Reply With Quote
  #10
Old 02-12-2011, 07:03 PM
Weasel's Avatar
Almost never on here anymore :(

Join Date: Jul 2008
Location: New Orleans, La
Posts: 6,892
Weasel will become famous soon enough
Every day there is more and more evidence that I am indeed retarded!
__________________
"When you do things right, people won't be sure you've done anything at all" (Bender, futurama)

You make something idiotproof, they'll make a better idiot


You think professional is expensive, just wait until you pay for amateur.

Never let your sense of morals prevent you from doing what is right.

Examine what is said, not who speaks.

X5 pics

RIP 4.6is.....

2003 4.6is
Reply With Quote
